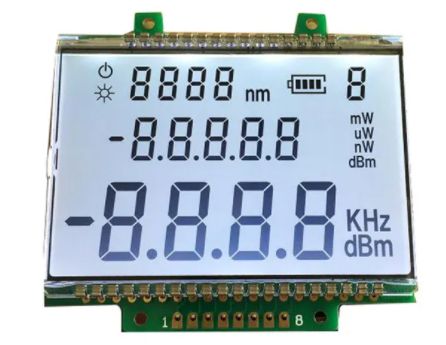

Custom 7 Segment LCD Display Panel with 83x76x1.1mm Dimensions 4.3V and 1/4 Duty 1/3 Bias

Custom 7 Segment LCD Display Panel / High Contrast Transparent Positve LCD Module

Product Details

Display Screen Introduction

Basic Principle: The 7-segment liquid crystal display panel shows numbers 0-9 and some simple characters and symbols by independently controlling 7 pen segments. Its working principle utilizes the optical rotation property of liquid crystal molecules, changing the arrangement direction of the liquid crystal molecules under the action of an electric field to affect the transmittance of light, thereby achieving the display or non-display of different pen segments. The high-contrast transparent positive liquid crystal module is based on positive liquid crystal, and through optimizing liquid crystal materials, optical film layers, etc., it improves the contrast between the display area and the non-display area while maintaining good transparency.

Structural Features: It is usually composed of a glass substrate, liquid crystal layer, electrodes, polarizing film, etc. The thickness of the glass substrate has various options such as 0.4mm and 0.55mm, and the connection methods include conductive adhesive strips, zebra paper, metal pins, etc.

Display Characteristics: It has the advantages of fast response speed, high contrast ratio, and low power consumption. The display mode is divided into positive and negative types, and the optical modes include reflective type, transmissive type, and semi-transmissive and semi-reflective type, etc. The color modes include yellow-green, gray, black, and white, etc. The contrast of the high-contrast transparent positive liquid crystal module is usually higher than that of ordinary liquid crystal modules. It can clearly display content even in strong light, and the transparency of the transparent area has a high transmittance of over 80%.

Customization Advantages: It can be customized according to the user's requirements, including size, display content, driving method, interface type, etc. For example, different-sized 7-segment pen segments can be customized to adapt to different viewing distances and display precision requirements; special symbols, logos, or multiple groups of 7-segment combinations can also be customized to meet specific display needs.

Purpose

Consumer electronics: Commonly used in devices such as calculators, electronic clocks, air conditioner remote controls, and game consoles, they display digital, character, and simple symbol information. Their low power consumption and low cost characteristics meet the requirements of consumer electronic products.

Industrial instruments and meters: Such as multimeters, oscilloscopes, electronic scales, flow meters, etc., can clearly display measurement data and units. Their high contrast and wide temperature operating characteristics enable them to adapt to various conditions in industrial environments.

Medical equipment: Widely used in portable medical instruments such as blood pressure monitors, blood glucose meters, and thermometers, they are used to display measurement results and related data. Their low radiation and stability are crucial for medical equipment.

Automotive electronics: Can be used in car dashboards to display information such as vehicle speed, fuel consumption, and water temperature. They can also be used in on-board air conditioning controllers, etc. High contrast ensures that drivers can clearly read the numbers even in strong light.

Smart home appliances: Such as microwave ovens, washing machines, water heaters, etc., display parameters such as working status, temperature, and time. The transparent feature also enables the display screen to better integrate with the glass panels of the appliances, enhancing the aesthetic appeal and technological sense of the products.

Smart transportation: In intelligent transportation systems, they can be used in electronic bus stop signs to display information such as bus numbers and arrival times. They can also be used in parking lot display screens, with their high contrast and wide viewing angle characteristics facilitating users to view the information from different angles.

FAQ:

1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?

Answer: No problem. Firstly, please kindly send us your specification/ drawing paper

If you have not the specification, you can also provide your samples; we will recommend the suitable one

if it is standard products. Or we can customize for you based on your own requirement.

2.This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content,

a new LCD glass module is need. We have to open new tooling for you.

3. This LCD display is HTN type, but I want STN type,can you make?
Answer: That’s all right . we can change for you as per you request.

4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size

of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.

5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment,

we can report you the exact time when you confirm the drawing paper.

6. Can you send us samples for checking?
Answer: Yes,. Samples order is available.

7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for

special ones, the leading time is about 15-30 days. suppose we can finish earlier, we will report the information in advanced.
